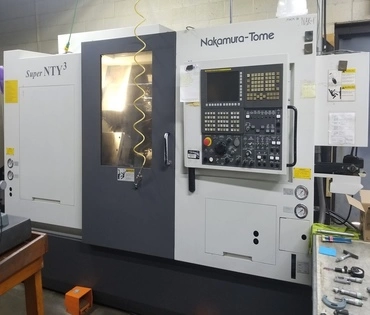

Buy a Nakamura NTY3 Turning Center !
Please Fill Out The Form Below
Sell a Nakamura Machine !
Sell It Here !Specifications
(Per Brochure)
| Nakamura NTY3 Turning Center | |
|---|---|
| Two Available ! | |
| Bar Capacity |
1.7" |
| Turning Length |
23" |
| Turning Diameter | 6.9" |
| Between Centers | 32" |
| X - Axis Travel | 5.1" |
| Z - Axis Travel Z1-Z2/Z3 | 9.7"/22.8" |
| B Axis Travel | 24.4" |
| C Axis | Full |
| Y Axis Travel | 2.4" |
| Driven Tool Speed | 6000 RPM |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 15/20HP |

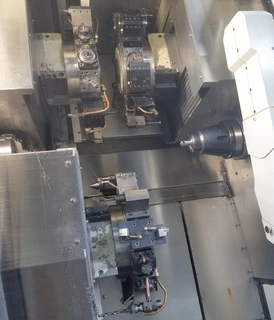

| Turrets | 3 |
| Number of index position per turret | 24 |
| Number of driven tools | 12 |
| Equipped With: | |

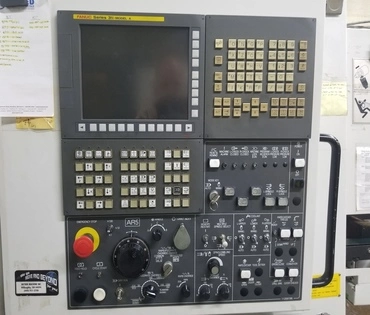

| Fanuc 31i-A control | |
| 2 Spindles - 3 Turrets | |
| 6" Chuck |
|
| Tool Presetter | |
| Chip Conveyor | |
| Parts Catcher type G | |
