Specifications
(Per Brochure)

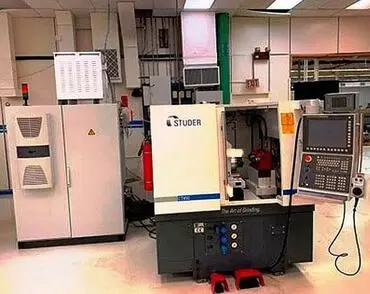

Used Studer CT450 Grinder | |
---|---|
Year | 2015 |
X Axis Travel | 17.7" |
Z Axis Travel |
7.4" |
B Axis | +- 2 degree |
C Axis | Full |
Workpiece Length Max | 9" |
Workpiece Diameter Max | 4.7" |
ID Spindle 1 | 90,000 RPM |
ID Spindle 2 | 120,000 RPM |
Equipped With: | |

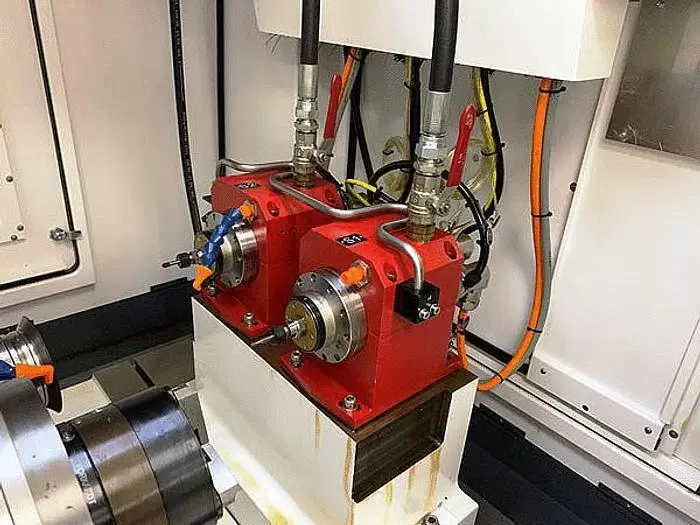

120,000 and 90,000 ID Spindles | |
Studer SimCT Software | |
Frequency Converter | |
Rotary Dressing | |
Fire Suppression Capable |
Compact and user-friendly
• Up to three HF grinding spindles in a linear arrangement
• Large selection of internal and external spindles (external wheel up
to dia 300 mm (12")

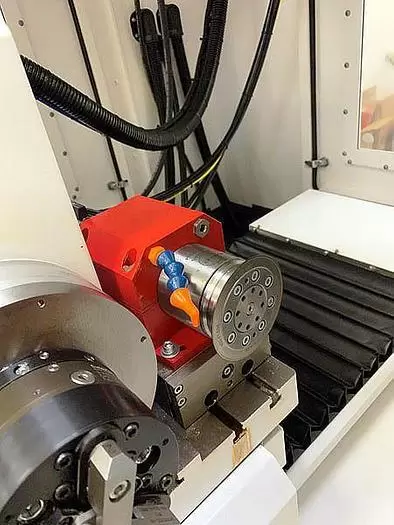

• C axis for the wor khead enabling form and thread
grinding
• Manual A axis for precise thread grinding
• Various dressing options
• Full enclosure with sliding door
• Integrated or autonomous loading systems
• Measuring probe
• StuderSimCTpc offline simulation software
•
Dovetailed work table for simple positioning of the grinding spindles
(optional)
• CNC-controlled Y-axis (vertical)
• Wide range of clamping devices and accessories
• Standardized interface for loader and peripheral devices
