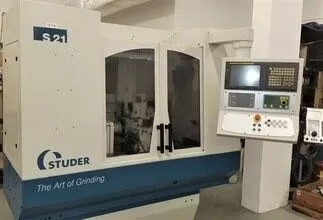

Used Studer S21 Cylindrical CNC Grinder

Photos

For a full Quotation on this machine, Please fill out the form below. Thank You!

selling Used CNC Grinder Studer S21

Buy a Studer S21 Cylindrical Grinder !

Please Fill Out The Form Below

Sell a Studer Grinder !

Sell It Here !

Specifications

(Per Brochure)

Used Studer S21 Cylindrical Grinder
Year 2004
Max Swing 9.8"
Center Height
4.9"
Center Distance 15.7"
Max Weight 66 lbs
B - Axis Auto
Wheel Size 16" x 1.5" x 5"
Wheel Head Power 7.5 HP
Equipped With:
ID Spindle
Movamatic Guaging
Length Position Probe
Paper Filtration System
Cartridge Filtration
Chiller
Rotary Swing Down Dresser
Single Point Dresser
Frequency Converter
Automatic Wheel Balancing
Ring Sensitron

Check Availability Studer S21 Cylindrical Grinder

 About Studer S21 Grinder

The Studer S21 is designed for the grinding of work pieces in individual as well as small and large series production operations. With the high-resolution B-axis of 0.0001 deg you can grind cylindrical and conical parts in a single clamping, saving changeover time. The versatile universal cylindrical Used Studer S21 grinding machine is designed for grinding small work pieces in customized as well as small and large batch production. It is produced in series, is expandable and can be adapted precisely to the demands made on it. The swiveling wheel head enables the external, internal and form grinding of work pieces in a single clamping. The wheel head is equipped with a coolant-cooled, motor spindle mounted on roller bearings, with infinite variable speed control. The versatile universal work head enables both live spindle grinding and grinding between centers. The machine can also be fitted with a special designed chuck work head for chuck applications. The longitudinal and cross slides are manufactured from high quality cast iron and have highly precise, ground V and flat guide ways with the distance between the guide ways optimally suited to the machine’s overall rigidity. The used Studer S21 can be automated and is especially suitable for grinding high-precision work pieces, as required by the aerospace, precision mechanics and hydraulic pneumatic sectors.
