CNC Machine Tool >> Grinder >> Toyoda Select G-100

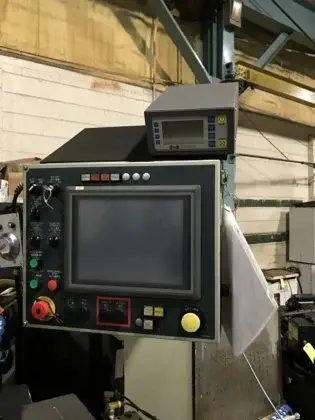

The Select G-100 was engineered for Tier 1 automotive shafts, bearing races, and aerospace pins that need both straight and angular grinding inside the same setup. Toyoda's floating-plate STAT bearing and hand-scraped cast iron base keep motion smooth, while the GC-50 control steps operators through dress cycles, wheel changes, and gauging checks with conversational screens.
A 12.59 inch swing, 6.3 inch center height, and 39.37 inch center distance leave room for splined shafts or longer hydraulic rods. The combination wheelhead pivots to 30 degrees so you can clean up shoulders, faces, and undercuts without breaking zero, and X/Z travels of 10.73 inches and 50 inches cover both plunge and traverse routines. The installed Toyoda shoulder gauge, in-process sizing probe, rotary dresser, paper plus magnetic coolant filtration, and SBS automatic wheel balancer match the 2011-2012 SMVI and Surplus Record listings we sourced.
Because the Select platform exposes generous I/O, it is simple to connect robots, gantries, or pallet shuttles. Door interlocks, mist-ready guarding, and GC-50 part program storage make it turnkey for lights-out production while still being approachable for job shops upgrading from manual grinders.
| Specification | Details |
|---|---|
| Model | Toyoda Select G-100 |
| Type | CNC Universal Cylindrical Grinder |
| Year | 2012 (per SMVI listing) |
| Condition | Excellent Used (straight or angle head) |
| Max Swing | 12.59" (320 mm) |
| Center Height | 6.3" (160 mm) |
| Distance Between Centers | 39.37" (1000 mm) |
| X-Axis Travel | 10.73" |
| Z-Axis Travel | 50" |
| Max Workpiece Weight | 330 lbs between centers |
| Wheel Size | 20" × 3" × 8" |
| Wheel Surface Speed | Up to 8,500 SFPM |
| Wheelhead Configuration | Straight spindle or 30° angle head |
| Workhead Taper | MT No. 4 |
| Workhead Speed | Infinitely variable to 500 RPM |
| Wheel RPM | 1,230 |
| Control | Toyoda GC-50 CNC |
| Equipped With |
|
Specifications gathered from SMVI and Surplus Record listings dated 2011-2012.
Sell a Toyoda Select or GL Series Grinder
Toyoda Grinder Models
Toyoda Select G-100 FAQ
The Select G-100 uses a combination wheelhead with positive stops every degree, so you can pivot to 30° in a few minutes, dress the wheel, and resume production without shifting centers.
Yes. GC-50 includes canned cycles for Toyoda shoulder and diameter gauges. This machine already has shoulder locating and in-process sizing hardware installed, so measurement data feeds directly into the control.
JS Peters coordinates inspections, video demos, rigging, freight, and installation assistance, and we can evaluate trades or buy your surplus Toyoda to simplify the project.
Contact JS Peters Machinery Sales to price this Toyoda Select G-100 or have us source another Select or GL series grinder.
