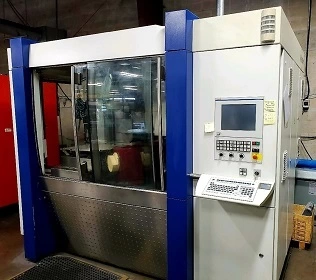

Used Wendt WAC 715 Centro insert grinder

Specifications

(Per Brochure)

USED Wendt WAC 715 Centro Insert Grinder New 2008

* Robotic Pallet Loading System for 4 pallets
* Kompensa 3D Measuring System
* Autocenter Centering System
* Fluid Master Cartridge Filter Coolant System
* Ebbco Chilling Unit
* Gripper Heads VP and FP-M
* Multiple Sets of Pallet Adapter Segments
* Standard Prism Block
* A-Axis with 360 degree Swing Range
* Extended Round Table Swivel up to -105 degree
* Hydrostatic Bearings on X,W Axis
* 400 mm Wheel Diameter
* Quick Change System For Grinding Wheels and         Dressing Wheel
* Flexible Gripper System for Workpieces Positioned
   Horizontally or Vertically
* 3D Real Time Simulation

Check Availability of Wendt Grinder

About Wendt Grinders

The axis principal grinding edge in round table center guarantees highest precision. Wendt WAC 715 Centro for grinding periphery and T-lands of tungsten carbide ceramic, CBN or PKD. Short setup times by magnetic connection of wheel, dress role and accessories components. Two 360 degree round axis are located on the round table. Grinding operation on all 6 sides are possible with only one clamping. The clamping unit C-Force guaranteed excellent clamping combined with enough moving space for the work piece.
